Spring-Cloud-Gateway 默认集成了一些负载均衡策略，比如轮询、随机、基于响应时间设置权重等等。由于业务需要，需要自定义一个策略，于是花时间先研究了下源码。先上结论：
一、结论
1、 LoadBalancerClient 接口中定义了 ServiceInstance choose(String serviceId) 方法，根据服务名获取具体的服务实例；
2、 SpringClientFactory 类中定义了 Map<String, AnnotationConfigApplicationContext> contexts，其中 key 为 serviceId，value 为 AnnotationConfigApplicationContext 对象。这意味着可以为每个服务设置不同的负载均衡策略。AnnotationConfigApplicationContext 中主要保存了 ILoadBalancer bean，定义了负载均衡的实现；而后者又依赖于：
* IClientConfig：定义了客户端配置，用于初始化客户端以及负载均衡配置；
* IRule：负载均衡的策略，比如轮询等；
* IPing：定义了如何确定服务实例是否正常；
* ServerList：定义了获取服务器列表的方法；
* ServerListFilter：根据配置或者过滤规则选择特定的服务器列表；
* ServerListUpdater：定义了动态更新服务器列表的策略。

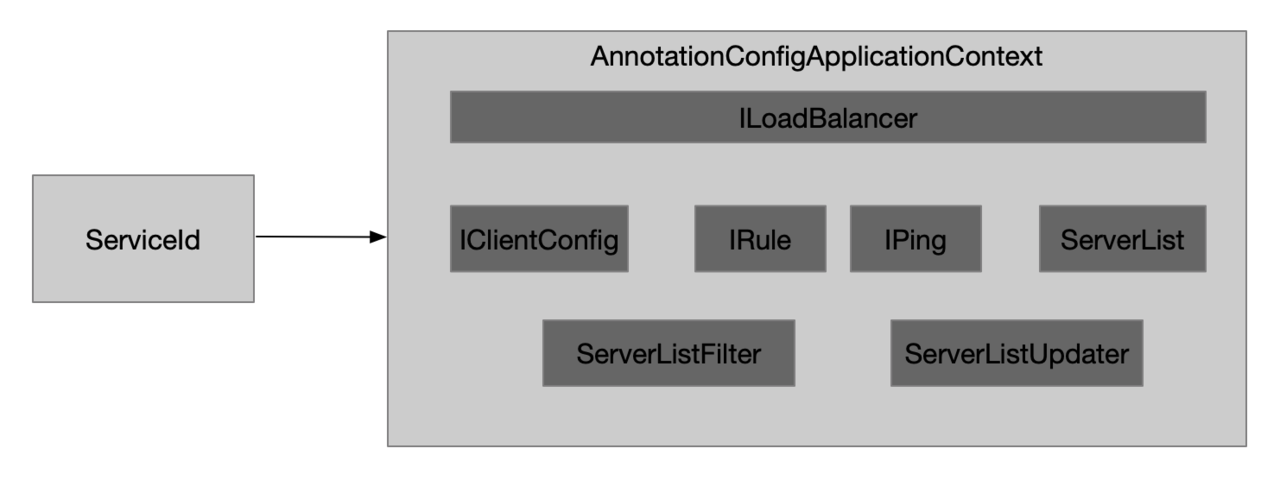

关系图如下所示：
1、 AnnotationConfigApplicationContext 中确定 ILoadBalancer 的次序是：优先通过外部配置导入，其次是配置类。
二、源码解析
1. LoadBalancerClient
LoadBalancerClient 是一个负载均衡客户端，定义了 ServiceInstance choose(String serviceId) 方法，即通过服务名按照给定的策略获取服务实例。
其接口定义如下：
public interface LoadBalancerClient extends ServiceInstanceChooser {
...
}
public interface ServiceInstanceChooser {
/**
* Chooses a ServiceInstance from the LoadBalancer for the specified service.
* @param serviceId The service ID to look up the LoadBalancer.
* @return A ServiceInstance that matches the serviceId.
*/
ServiceInstance choose(String serviceId);
}
public interface ServiceInstance {
default String getInstanceId() {
return null;
}
String getServiceId();
String getHost();
int getPort();
boolean isSecure();
URI getUri();
Map<String, String> getMetadata();
default String getScheme() {
return null;
}
}
默认实现类是 RibbonLoadBalancerClient：
public class RibbonLoadBalancerClient implements LoadBalancerClient {
@Override
public ServiceInstance choose(String serviceId) {
return choose(serviceId, null);
}
public ServiceInstance choose(String serviceId, Object hint) {
Server server = getServer(getLoadBalancer(serviceId), hint);
if (server == null) {
return null;
}
return new RibbonServer(serviceId, server, isSecure(server, serviceId),
serverIntrospector(serviceId).getMetadata(server));
}
protected ILoadBalancer getLoadBalancer(String serviceId) {
return this.clientFactory.getLoadBalancer(serviceId);
}
}
第 9 行：getLoadBalancer(serviceId)，先根据服务名获取负载均衡策略；getServer(getLoadBalancer(serviceId), hint)，然后根据策略选择具体的服务实例。
第 18 行：根据服务名获取负载均衡策略由 SpringClientFactory 类实现。
2. SpringClientFactory
SpringClientFactory 中保存了每个服务的负载均衡的完整实现。
public class SpringClientFactory extends NamedContextFactory<RibbonClientSpecification> {
public ILoadBalancer getLoadBalancer(String name) {
return getInstance(name, ILoadBalancer.class);
}
@Override
public <C> C getInstance(String name, Class<C> type) {
C instance = super.getInstance(name, type);
if (instance != null) {
return instance;
}
IClientConfig config = getInstance(name, IClientConfig.class);
return instantiateWithConfig(getContext(name), type, config);
}
}
public abstract class NamedContextFactory<C extends NamedContextFactory.Specification>
implements DisposableBean, ApplicationContextAware {
// contexts 保存了每个 serviceId 对应的所有配置
private Map<String, AnnotationConfigApplicationContext> contexts = new ConcurrentHashMap<>();
public <T> T getInstance(String name, Class<T> type) {
AnnotationConfigApplicationContext context = getContext(name);
if (BeanFactoryUtils.beanNamesForTypeIncludingAncestors(context,
type).length > 0) {
return context.getBean(type);
}
return null;
}
// 返回 serviceId 对应的 AnnotationConfigApplicationContext
// 如果不存在，调用 createContext(String name) 方法创建
protected AnnotationConfigApplicationContext getContext(String name) {
if (!this.contexts.containsKey(name)) {
synchronized (this.contexts) {
if (!this.contexts.containsKey(name)) {
this.contexts.put(name, createContext(name));
}
}
}
return this.contexts.get(name);
}
// 创建服务 name 对应的 AnnotationConfigApplicationContext
protected AnnotationConfigApplicationContext createContext(String name) {
AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();
// 1. 先检查外部导入的配置 configurations 中是否包含 serviceId 服务，有的话导入
if (this.configurations.containsKey(name)) {
for (Class<?> configuration : this.configurations.get(name)
.getConfiguration()) {
context.register(configuration);
}
}
// 2. 检查外部导入的配置中是否含有默认配置，有的话导入
for (Map.Entry<String, C> entry : this.configurations.entrySet()) {
if (entry.getKey().startsWith("default.")) {
for (Class<?> configuration : entry.getValue().getConfiguration()) {
context.register(configuration);
}
}
}
// 3. 将 PropertyPlaceholderAutoConfiguration 以及 defaultConfigType 注册类中的 bean 注册到 context 中（如果使用 SpringClientFactory 的默认 bean 的话，这里的 this.defaultConfigType 指的是 RibbonClientConfiguration）
context.register(PropertyPlaceholderAutoConfiguration.class,
this.defaultConfigType);
context.getEnvironment().getPropertySources().addFirst(new MapPropertySource(
this.propertySourceName,
Collections.<String, Object> singletonMap(this.propertyName, name)));
if (this.parent != null) {
// Uses Environment from parent as well as beans
context.setParent(this.parent);
}
context.setDisplayName(generateDisplayName(name));
context.refresh();
return context;
}
}
3. ILoadBalancer
LoadBalancerClient 的 getServer 方法最终调用的是 ILoadBalancer 接口的 chooseServer 方法。
public class RibbonLoadBalancerClient implements LoadBalancerClient {
protected Server getServer(ILoadBalancer loadBalancer, Object hint) {
if (loadBalancer == null) {
return null;
}
// Use 'default' on a null hint, or just pass it on?
return loadBalancer.chooseServer(hint != null ? hint : "default");
}
...
}
public interface ILoadBalancer {
/**
* Choose a server from load balancer.
*/
public Server chooseServer(Object key);
...
}
根据 ILoadBalancer 的 chooseServer(Object key) 方法选择服务实例。

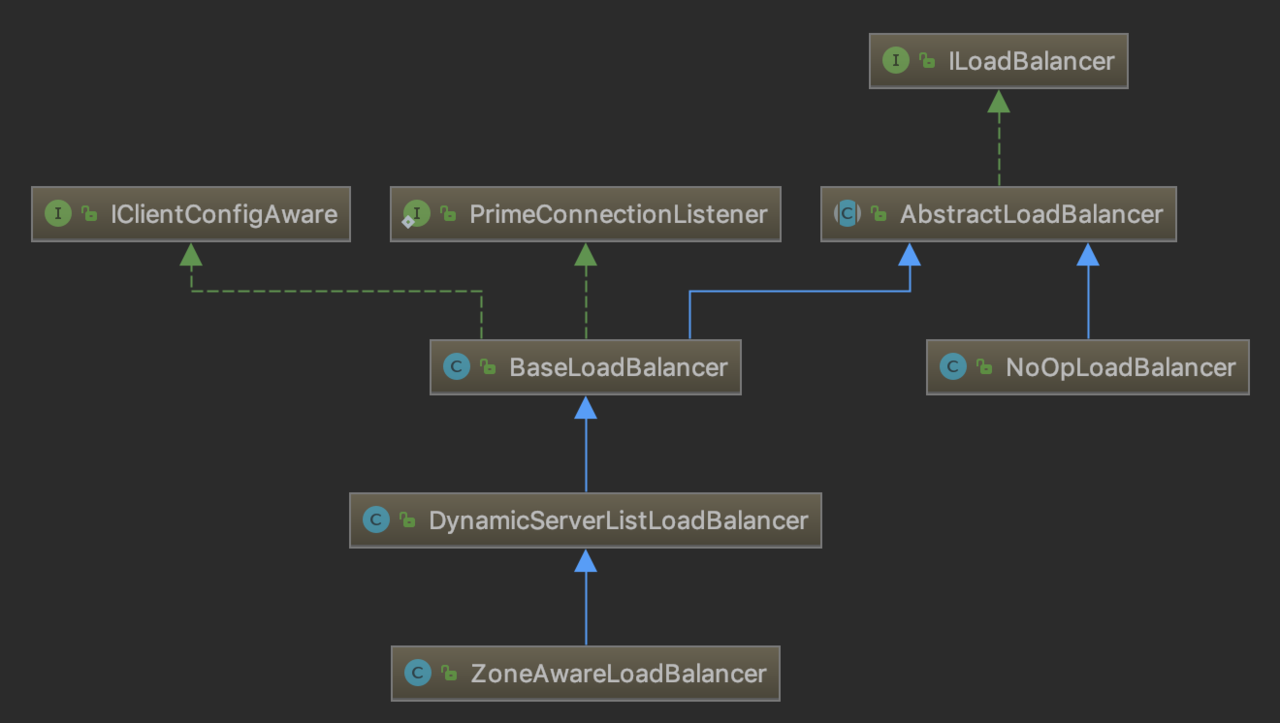

ILoadBalancer 接口的实现类如下图所示，默认的 bean 为 ZoneAwareLoadBalancer。
分析下 ILoadBase 的基本要素：
public DynamicServerListLoadBalancer(IClientConfig clientConfig, IRule rule, IPing ping,
ServerList<T> serverList, ServerListFilter<T> filter,
ServerListUpdater serverListUpdater) {
super(clientConfig, rule, ping);
this.serverListImpl = serverList;
this.filter = filter;
this.serverListUpdater = serverListUpdater;
if (filter instanceof AbstractServerListFilter) {
((AbstractServerListFilter) filter).setLoadBalancerStats(getLoadBalancerStats());
}
restOfInit(clientConfig);
}
- ClientConfig：定义了客户端配置，用于初始化客户端以及负载均衡配置。
- IRule：负载均衡的规则（策略），比如轮询等。
- IPing：定义了如何确定服务实例是否正常。
- ServerList：定义了获取服务器列表的方法。
- ServerListUpdater：定义了动态更新服务器列表的策略。
- ServerListFilter：根据配置或者过滤规则选择特定的服务器列表，使用 consul 作为注册中心的话默认实现为 HealthServiceServerListFilter。
在 RibbonClientConfiguration 配置类中定义了默认实现：
@Configuration
@EnableConfigurationProperties
@Import({HttpClientConfiguration.class, OkHttpRibbonConfiguration.class, RestClientRibbonConfiguration.class, HttpClientRibbonConfiguration.class})
public class RibbonClientConfiguration {
public static final int DEFAULT_CONNECT_TIMEOUT = 1000;
public static final int DEFAULT_READ_TIMEOUT = 1000;
public static final boolean DEFAULT_GZIP_PAYLOAD = true;
@RibbonClientName
private String name = "client";
@Autowired
private PropertiesFactory propertiesFactory;
@Bean
@ConditionalOnMissingBean
public IClientConfig ribbonClientConfig() {
DefaultClientConfigImpl config = new DefaultClientConfigImpl();
config.loadProperties(this.name);
config.set(CommonClientConfigKey.ConnectTimeout, DEFAULT_CONNECT_TIMEOUT);
config.set(CommonClientConfigKey.ReadTimeout, DEFAULT_READ_TIMEOUT);
config.set(CommonClientConfigKey.GZipPayload, DEFAULT_GZIP_PAYLOAD);
return config;
}
@Bean
@ConditionalOnMissingBean
public IRule ribbonRule(IClientConfig config) {
if (this.propertiesFactory.isSet(IRule.class, name)) {
return this.propertiesFactory.get(IRule.class, config, name);
}
ZoneAvoidanceRule rule = new ZoneAvoidanceRule();
rule.initWithNiwsConfig(config);
return rule;
}
@Bean
@ConditionalOnMissingBean
public IPing ribbonPing(IClientConfig config) {
if (this.propertiesFactory.isSet(IPing.class, name)) {
return this.propertiesFactory.get(IPing.class, config, name);
}
return new DummyPing();
}
@Bean
@ConditionalOnMissingBean
@SuppressWarnings("unchecked")
public ServerList<Server> ribbonServerList(IClientConfig config) {
if (this.propertiesFactory.isSet(ServerList.class, name)) {
return this.propertiesFactory.get(ServerList.class, config, name);
}
ConfigurationBasedServerList serverList = new ConfigurationBasedServerList();
serverList.initWithNiwsConfig(config);
return serverList;
}
@Bean
@ConditionalOnMissingBean
public ServerListUpdater ribbonServerListUpdater(IClientConfig config) {
return new PollingServerListUpdater(config);
}
@Bean
@ConditionalOnMissingBean
public ILoadBalancer ribbonLoadBalancer(IClientConfig config,
ServerList<Server> serverList, ServerListFilter<Server> serverListFilter,
IRule rule, IPing ping, ServerListUpdater serverListUpdater) {
if (this.propertiesFactory.isSet(ILoadBalancer.class, name)) {
return this.propertiesFactory.get(ILoadBalancer.class, config, name);
}
return new ZoneAwareLoadBalancer<>(config, rule, ping, serverList,
serverListFilter, serverListUpdater);
}
@Bean
@ConditionalOnMissingBean
@SuppressWarnings("unchecked")
public ServerListFilter<Server> ribbonServerListFilter(IClientConfig config) {
if (this.propertiesFactory.isSet(ServerListFilter.class, name)) {
return this.propertiesFactory.get(ServerListFilter.class, config, name);
}
ZonePreferenceServerListFilter filter = new ZonePreferenceServerListFilter();
filter.initWithNiwsConfig(config);
return filter;
}
@Bean
@ConditionalOnMissingBean
public RibbonLoadBalancerContext ribbonLoadBalancerContext(ILoadBalancer loadBalancer,
IClientConfig config, RetryHandler retryHandler) {
return new RibbonLoadBalancerContext(loadBalancer, config, retryHandler);
}
@Bean
@ConditionalOnMissingBean
public RetryHandler retryHandler(IClientConfig config) {
return new DefaultLoadBalancerRetryHandler(config);
}
@Bean
@ConditionalOnMissingBean
public ServerIntrospector serverIntrospector() {
return new DefaultServerIntrospector();
}
@PostConstruct
public void preprocess() {
setRibbonProperty(name, DeploymentContextBasedVipAddresses.key(), name);
}
static class OverrideRestClient extends RestClient {
private IClientConfig config;
private ServerIntrospector serverIntrospector;
protected OverrideRestClient(IClientConfig config,
ServerIntrospector serverIntrospector) {
super();
this.config = config;
this.serverIntrospector = serverIntrospector;
initWithNiwsConfig(this.config);
}
@Override
public URI reconstructURIWithServer(Server server, URI original) {
URI uri = updateToSecureConnectionIfNeeded(original, this.config,
this.serverIntrospector, server);
return super.reconstructURIWithServer(server, uri);
}
@Override
protected Client apacheHttpClientSpecificInitialization() {
ApacheHttpClient4 apache = (ApacheHttpClient4) super.apacheHttpClientSpecificInitialization();
apache.getClientHandler().getHttpClient().getParams().setParameter(
ClientPNames.COOKIE_POLICY, CookiePolicy.IGNORE_COOKIES);
return apache;
}
}
}
如果使用 consul 注册中心的话，默认实现如下：
@Configuration
public class ConsulRibbonClientConfiguration {
@Autowired
private ConsulClient client;
@Value("${ribbon.client.name}")
private String serviceId = "client";
protected static final String VALUE_NOT_SET = "__not__set__";
protected static final String DEFAULT_NAMESPACE = "ribbon";
public ConsulRibbonClientConfiguration() {
}
public ConsulRibbonClientConfiguration(String serviceId) {
this.serviceId = serviceId;
}
@Bean
@ConditionalOnMissingBean
public ServerList<?> ribbonServerList(IClientConfig config, ConsulDiscoveryProperties properties) {
ConsulServerList serverList = new ConsulServerList(client, properties);
serverList.initWithNiwsConfig(config);
return serverList;
}
@Bean
@ConditionalOnMissingBean
public ServerListFilter<Server> ribbonServerListFilter() {
return new HealthServiceServerListFilter();
}
@Bean
@ConditionalOnMissingBean
public IPing ribbonPing() {
return new ConsulPing();
}
@Bean
@ConditionalOnMissingBean
public ConsulServerIntrospector serverIntrospector() {
return new ConsulServerIntrospector();
}
@PostConstruct
public void preprocess() {
setProp(this.serviceId, DeploymentContextBasedVipAddresses.key(), this.serviceId);
setProp(this.serviceId, EnableZoneAffinity.key(), "true");
}
protected void setProp(String serviceId, String suffix, String value) {
// how to set the namespace properly?
String key = getKey(serviceId, suffix);
DynamicStringProperty property = getProperty(key);
if (property.get().equals(VALUE_NOT_SET)) {
ConfigurationManager.getConfigInstance().setProperty(key, value);
}
}
protected DynamicStringProperty getProperty(String key) {
return DynamicPropertyFactory.getInstance().getStringProperty(key, VALUE_NOT_SET);
}
protected String getKey(String serviceId, String suffix) {
return serviceId + "." + DEFAULT_NAMESPACE + "." + suffix;
}
}
可以看到，改写了几个 bean 的默认实现：
- ServerList：ConsulServerList；
- ServerListFilter：HealthServiceServerListFilter；
- IPing：ConsulPing。
继续查看源码，最终定位到由 IRule 接口的 choose(Object key) 方法来选择服务实例。
public class ZoneAwareLoadBalancer<T extends Server> extends DynamicServerListLoadBalancer<T> {
@Override
public Server chooseServer(Object key) {
if (!ENABLED.get() || getLoadBalancerStats().getAvailableZones().size() <= 1) {
logger.debug("Zone aware logic disabled or there is only one zone");
return super.chooseServer(key);
}
...
}
...
}
public class BaseLoadBalancer extends AbstractLoadBalancer implements
PrimeConnections.PrimeConnectionListener, IClientConfigAware {
public Server chooseServer(Object key) {
if (counter == null) {
counter = createCounter();
}
counter.increment();
if (rule == null) {
return null;
} else {
try {
return rule.choose(key);
} catch (Exception e) {
logger.warn("LoadBalancer [{}]: Error choosing server for key {}", name, key, e);
return null;
}
}
}
}
public interface IRule {
public Server choose(Object key);
}

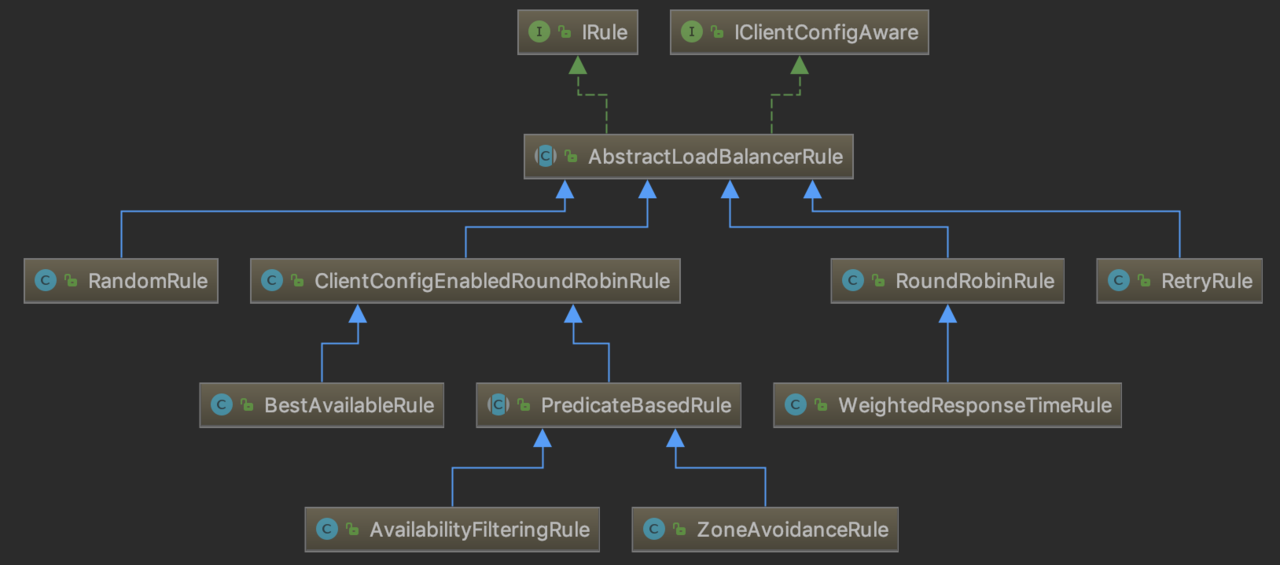

来看下 IRule 接口的实现类，
默认的 ZoneAvoidanceRule 是根据 zone 区域以及可用性来进行选择。
ZoneAvoidanceRule 继承了 PredicateBasedRule 类，
public abstract class PredicateBasedRule extends ClientConfigEnabledRoundRobinRule {
@Override
public Server choose(Object key) {
ILoadBalancer lb = getLoadBalancer();
// lb.getAllServers(): 获取所有服务实例
// 然后根据 serviceId 以及负载均衡策略选择实例
Optional<Server> server = getPredicate().chooseRoundRobinAfterFiltering(lb.getAllServers(), key);
if (server.isPresent()) {
return server.get();
} else {
return null;
}
}
}
// 获取所有服务实例方法如下
public class BaseLoadBalancer extends AbstractLoadBalancer implements
PrimeConnections.PrimeConnectionListener, IClientConfigAware {
@Monitor(name = PREFIX + "AllServerList", type = DataSourceType.INFORMATIONAL)
protected volatile List<Server> allServerList = Collections
.synchronizedList(new ArrayList<Server>());
// 直接返回 allServerList，说明在生成 BaseLoadBalancer 对象的时候已经完成了初始化操作
@Override
public List<Server> getAllServers() {
return Collections.unmodifiableList(allServerList);
}
}
看下 ZoneAwareLoadBalancer bean 是如何生成的：
public class RibbonClientConfiguration {
@Bean
@ConditionalOnMissingBean
public ILoadBalancer ribbonLoadBalancer(IClientConfig config,
ServerList<Server> serverList, ServerListFilter<Server> serverListFilter,
IRule rule, IPing ping, ServerListUpdater serverListUpdater) {
if (this.propertiesFactory.isSet(ILoadBalancer.class, name)) {
return this.propertiesFactory.get(ILoadBalancer.class, config, name);
}
return new ZoneAwareLoadBalancer<>(config, rule, ping, serverList,
serverListFilter, serverListUpdater);
}
}
public class ZoneAwareLoadBalancer<T extends Server> extends DynamicServerListLoadBalancer<T> {
public ZoneAwareLoadBalancer(IClientConfig clientConfig, IRule rule,
IPing ping, ServerList<T> serverList, ServerListFilter<T> filter,
ServerListUpdater serverListUpdater) {
super(clientConfig, rule, ping, serverList, filter, serverListUpdater);
}
}
public class DynamicServerListLoadBalancer<T extends Server> extends BaseLoadBalancer {
public DynamicServerListLoadBalancer(IClientConfig clientConfig, IRule rule, IPing ping,
ServerList<T> serverList, ServerListFilter<T> filter,
ServerListUpdater serverListUpdater) {
super(clientConfig, rule, ping);
this.serverListImpl = serverList;
this.filter = filter;
this.serverListUpdater = serverListUpdater;
if (filter instanceof AbstractServerListFilter) {
((AbstractServerListFilter) filter).setLoadBalancerStats(getLoadBalancerStats());
}
// 初始化操作
restOfInit(clientConfig);
}
}
最终定位到了 restOfInit(clientConfig) 方法，继续分析该方法：
public class DynamicServerListLoadBalancer<T extends Server> extends BaseLoadBalancer {
void restOfInit(IClientConfig clientConfig) {
boolean primeConnection = this.isEnablePrimingConnections();
this.setEnablePrimingConnections(false);
// enableAndInitLearnNewServersFeature() 方法里面定义了一个定时任务，会定时执行 updateListOfServers()
enableAndInitLearnNewServersFeature();
// 立刻执行
updateListOfServers();
if (primeConnection && this.getPrimeConnections() != null) {
this.getPrimeConnections()
.primeConnections(getReachableServers());
}
this.setEnablePrimingConnections(primeConnection);
LOGGER.info("DynamicServerListLoadBalancer for client {} initialized: {}", clientConfig.getClientName(), this.toString());
}
public void enableAndInitLearnNewServersFeature() {
LOGGER.info("Using serverListUpdater {}", serverListUpdater.getClass().getSimpleName());
serverListUpdater.start(updateAction);
}
@VisibleForTesting
public void updateListOfServers() {
List<T> servers = new ArrayList();
if (this.serverListImpl != null) {
// 1. 获取所有服务器列表，调用 ConsulServerList 类
// ConsulServerList 的实现是通过调用 consul 提供的 http 接口：/health/service/:service，通过设置 passing（指定是否需要返回所有健康检查都通过的实例）参数为 false 返回所有实例
servers = this.serverListImpl.getUpdatedListOfServers();
LOGGER.debug("List of Servers for {} obtained from Discovery client: {}", this.getIdentifier(), servers);
if (this.filter != null) {
// 2. 获取过滤后的服务器列表（返回通过健康检查的服务实例）
// 调用 HealthServiceServerListFilter 类
servers = this.filter.getFilteredListOfServers((List)servers);
LOGGER.debug("Filtered List of Servers for {} obtained from Discovery client: {}", this.getIdentifier(), servers);
}
}
// 3. 更新可用的服务实例
this.updateAllServerList((List)servers);
}
protected void updateAllServerList(List<T> ls) {
// other threads might be doing this - in which case, we pass
if (serverListUpdateInProgress.compareAndSet(false, true)) {
try {
for (T s : ls) {
s.setAlive(true); // set so that clients can start using these
// servers right away instead
// of having to wait out the ping cycle.
}
setServersList(ls);
super.forceQuickPing();
} finally {
serverListUpdateInProgress.set(false);
}
}
}
}
public class PollingServerListUpdater implements ServerListUpdater {
@Override
public synchronized void start(final UpdateAction updateAction) {
if (isActive.compareAndSet(false, true)) {
final Runnable wrapperRunnable = new Runnable() {
@Override
public void run() {
if (!isActive.get()) {
if (scheduledFuture != null) {
scheduledFuture.cancel(true);
}
return;
}
try {
updateAction.doUpdate();
lastUpdated = System.currentTimeMillis();
} catch (Exception e) {
logger.warn("Failed one update cycle", e);
}
}
};
// 定义了一个线程组，用来执行定时任务，线程名为 PollingServerListUpdater-%d
// 初次执行延迟时间为 1s，之后执行间隔时间默认为 30s
// 定时任务主要是上面的 updateAction.doUpdate() 方法
scheduledFuture = getRefreshExecutor().scheduleWithFixedDelay(
wrapperRunnable,
initialDelayMs,
refreshIntervalMs,
TimeUnit.MILLISECONDS
);
} else {
logger.info("Already active, no-op");
}
}
// 定时任务的间隔时间优先从 clientConfig 中获取，如果没有设置的话，默认为 30s
private static long getRefreshIntervalMs(IClientConfig clientConfig) {
return clientConfig.get(CommonClientConfigKey.ServerListRefreshInterval, LISTOFSERVERS_CACHE_REPEAT_INTERVAL);
}
}
以上代码的逻辑是：通过调用 restOfInit 方法对所有服务实例列表、可用服务实例列表等进行初始化；并且通过在 PollingServerListUpdater 类中设置了一个线程组执行定时任务，默认间隔 30s，用于更新所有服务实例以及通过健康检查的实例列表。
以上代码用到了 IRule，ServerList，ServerListFilter 等接口，那么 IPing 的作用又是什么呢？
继续查看源码，
public class BaseLoadBalancer extends AbstractLoadBalancer implements
PrimeConnections.PrimeConnectionListener, IClientConfigAware {
// 1. 构造函数中有个设置 setupPingTask 方法
public BaseLoadBalancer() {
this.name = DEFAULT_NAME;
this.ping = null;
setRule(DEFAULT_RULE);
setupPingTask();
lbStats = new LoadBalancerStats(DEFAULT_NAME);
}
// 2. 该方法中针对每个服务都设置了一个线程，定时执行 PingTask
void setupPingTask() {
// 可以跳过
if (canSkipPing()) {
return;
}
if (lbTimer != null) {
lbTimer.cancel();
}
lbTimer = new ShutdownEnabledTimer("NFLoadBalancer-PingTimer-" + name,
true);
lbTimer.schedule(new PingTask(), 0, pingIntervalSeconds * 1000); // 默认10s
forceQuickPing();
}
class PingTask extends TimerTask {
public void run() {
try {
new Pinger(pingStrategy).runPinger();
} catch (Exception e) {
logger.error("LoadBalancer [{}]: Error pinging", name, e);
}
}
}
class Pinger {
// 3. 具体的 PingTask 内容
public void runPinger() throws Exception {
if (!pingInProgress.compareAndSet(false, true)) {
return; // Ping in progress - nothing to do
}
Server[] allServers = null;
boolean[] results = null;
Lock allLock = null;
Lock upLock = null;
try {
allLock = allServerLock.readLock();
allLock.lock();
// 3.1 如果采用注册中心的话，allServerList 是从注册中心获取的服务器列表
allServers = allServerList.toArray(new Server[allServerList.size()]);
allLock.unlock();
int numCandidates = allServers.length;
// 3.2 检查每个服务实例的健康状态，健康为 true
// DynamicServerListLoadBalancer 中的 updateListOfServers 设置了 allServers 为通过健康检查的服务实例
results = pingerStrategy.pingServers(ping, allServers);
final List<Server> newUpList = new ArrayList<Server>();
final List<Server> changedServers = new ArrayList<Server>();
for (int i = 0; i < numCandidates; i++) {
boolean isAlive = results[i];
Server svr = allServers[i];
boolean oldIsAlive = svr.isAlive();
svr.setAlive(isAlive);
// 3.3 比较和之前的状态是否不一样
if (oldIsAlive != isAlive) {
changedServers.add(svr);
logger.debug("LoadBalancer [{}]: Server [{}] status changed to {}",
name, svr.getId(), (isAlive ? "ALIVE" : "DEAD"));
}
// 3.4 更新本地变量 newUpList
if (isAlive) {
newUpList.add(svr);
}
}
upLock = upServerLock.writeLock();
upLock.lock();
// 3.5 更新可用的服务实例列表
upServerList = newUpList;
upLock.unlock();
notifyServerStatusChangeListener(changedServers);
} finally {
pingInProgress.set(false);
}
}
}
}
经过以上代码，得出的流程大概是：
- PollingServerListUpdater 以及 DynamicServerListLoadBalancer 负责每隔 30s 从注册中心获取所有的服务实例，并且筛选出状态正常的实例加入到 allServerList 以及 upServerList 中；
- BaseLoadBalancer 中的 setupPingTask() 方法负责每隔 10s “ping” 下这些 allServerList 中的服务器，如果状态异常，则从 upServerList 中剔除。
如果有服务实例挂了，给人的感觉是最多会有 10s 左右的时间部分请求可能会报错，很不幸，这是不对的。最多有可能达到 30s 左右。
深入 3.2 results = pingerStrategy.pingServers(ping, allServers) 这行源码，最终定位到（如果采用 ConsulPing 的话）：
public class ConsulPing implements IPing {
@Override
public boolean isAlive(Server server) {
boolean isAlive = true;
if (server != null && server instanceof ConsulServer) {
ConsulServer consulServer = (ConsulServer) server;
return consulServer.isPassingChecks();
}
return isAlive;
}
}
这里的入参是 DynamicServerListLoadBalancer 返回的状态正常的服务器列表，那么其执行 ConsulPing 的 isAlive 方法，其结果肯定为 true；原因在于调用 ConsulPing 的 isAlive 方法，并没有执行真正意义上的 “ping” 操作（比如再次调用 consul 的 api 接口去确认该服务实例是否正常），而是直接返回 ConsulServer 对象中的健康检查状态。
三、不算问题的问题
1、 BaseLoadBalancer 类，为每个服务都设置了一个线程用于定期执行 PingTask 任务；作为网关，如果需要对接上百个微服务的话，就会产生上百个线程，而每个线程大部分时间处于闲置状态。可以考虑设置一个较小的线程池替代。
2、 Consul 作为注册中心的话，ConsulPing 的实现没有起到期望的作用。可以考虑跳过 Ping 检查（比如设置默认 IPing 为 DummyPing），通过缩小 PollingServerListUpdater 中定时任务的执行间隔来降低个别服务实例掉线的影响。
