一 背景

目前k8s监控可以分为：资源监控，性能监控，安全健康等，但是在K8s中，如何表示一个资源对象的状态及一些列的资源状态转换，需要事件监控来表示，目前阿里有开源的K8s事件监控项目kube-eventer， 其将事件分为两种，一种是Warning事件，表示产生这个事件的状态转换是在非预期的状态之间产生的；另外一种是Normal事件，表示期望到达的状态，和目前达到的状态是一致的。

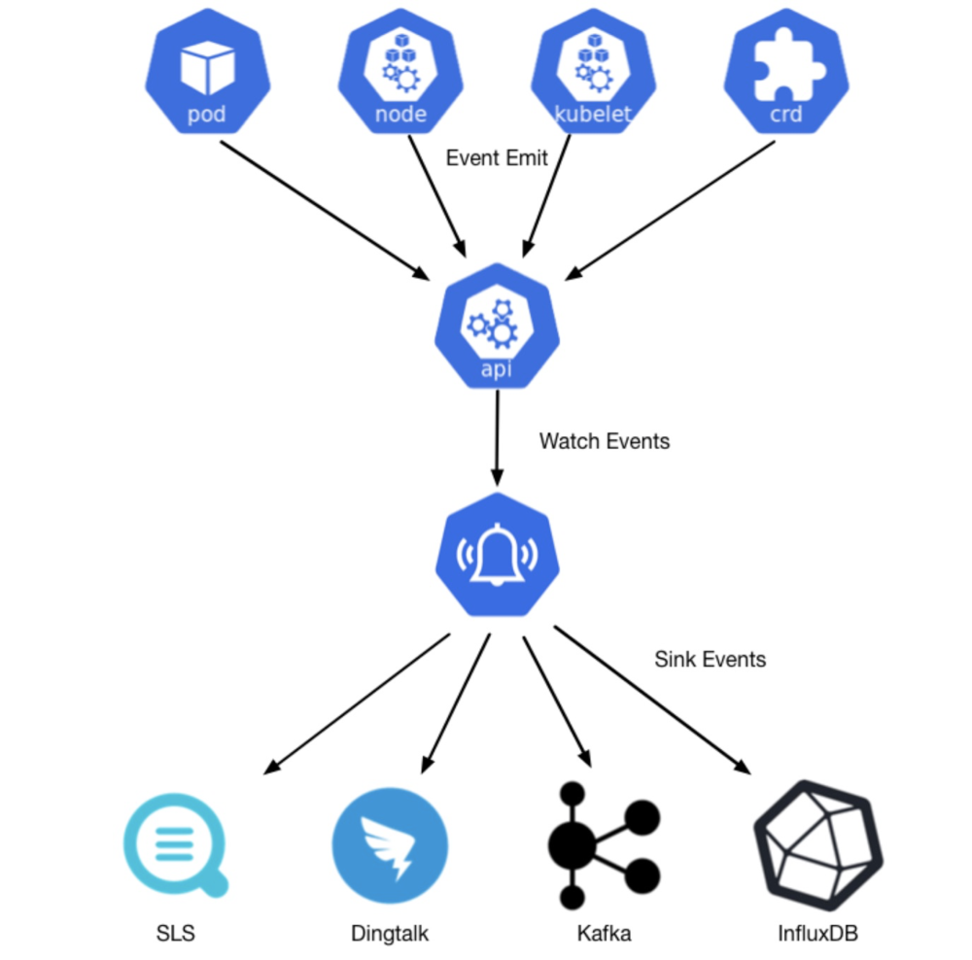

可以收集pod/node/kubelet等资源对象的event，还可以收集自定义资源对象的event，汇聚处理发送到配置好好的接受端，架构图如下所示。

二 安装部署

使用阿里的开源k8s事件监控项目，可以收集k8s的事件日志，来自定义等级告警

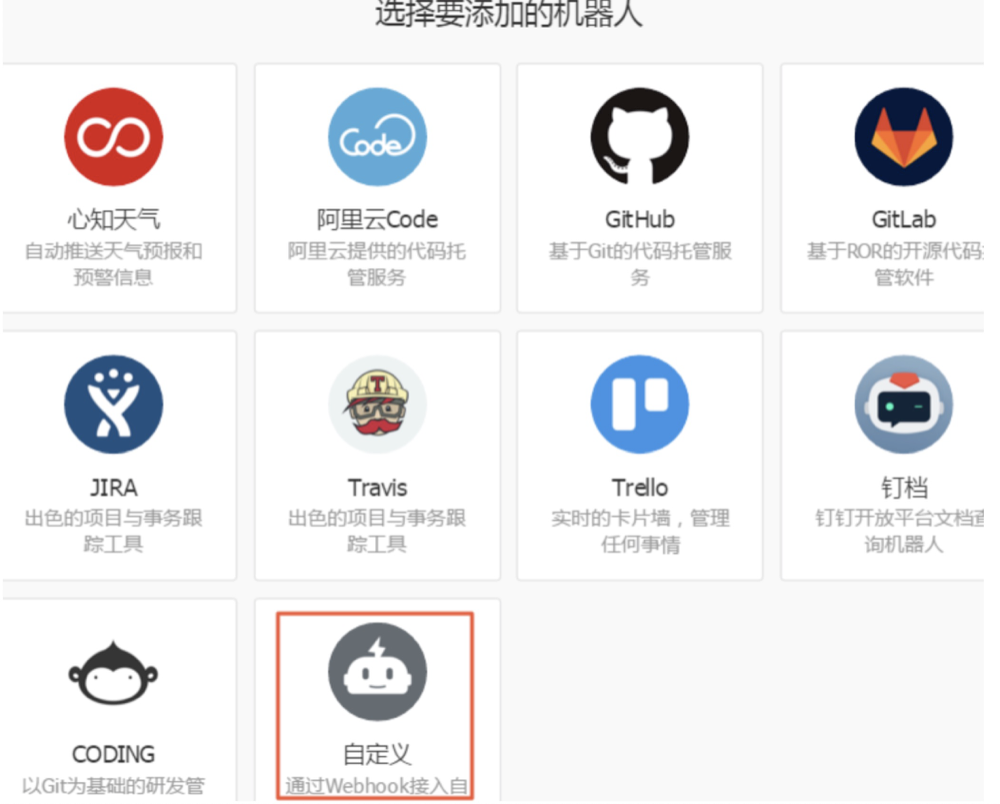

2.1 钉钉机器人配置

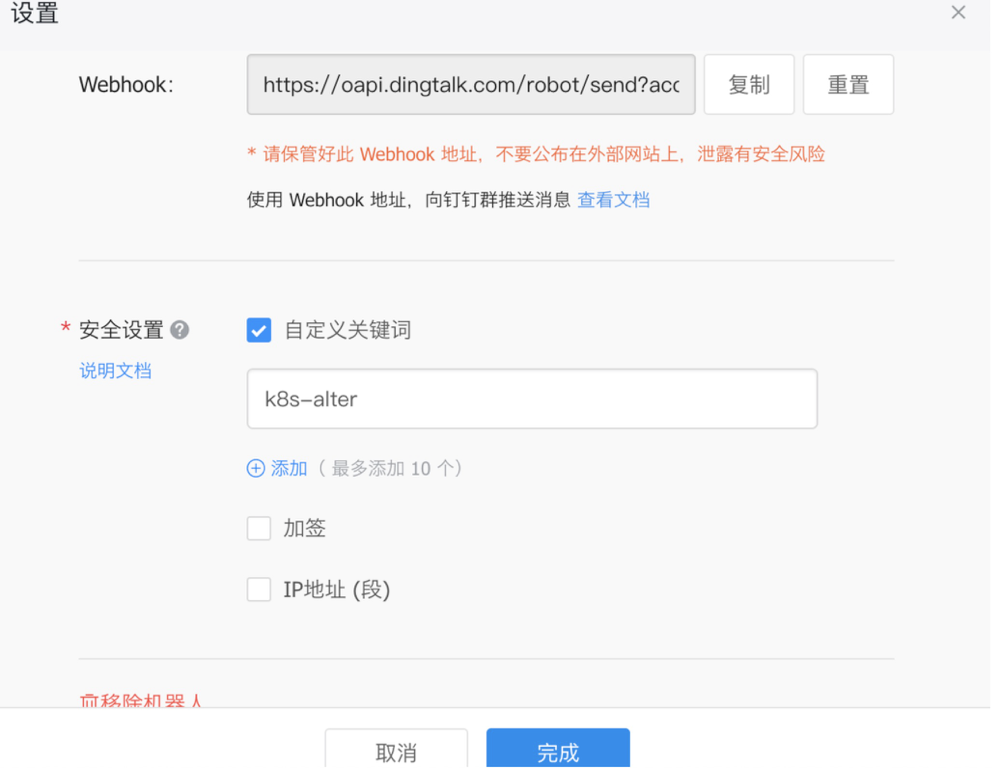

目前新加的自定义机器人需要安全配置，可以配置标签，然后在sink的label中定义

记录保存webhook

https://oapi.dingtalk.com/robot/send?access_token=e1xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx8fe

2.2 部署资源

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  labels:
    name: kube-eventer
  name: kube-eventer
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kube-eventer
  template:
    metadata:
      labels:
        app: kube-eventer
    spec:
      dnsPolicy: ClusterFirstWithHostNet
      serviceAccount: kube-eventer
      containers:
        - image: registry.aliyuncs.com/acs/kube-eventer-amd64:v1.1.0-63e7f98-aliyun
          name: kube-eventer
          command:
            - "/kube-eventer"
            - "--source=kubernetes:https://kubernetes.default"
            ## .e.g,dingtalk sink demo
            - --sink=dingtalk:https://oapi.dingtalk.com/robot/send?access_token=exxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx28fe&label=anchnet-kubesphere&level=Warning&msg_type=markdown
          env:
          # If TZ is assigned, set the TZ value as the time zone
          - name: TZ
            value: America/New_York
          volumeMounts:
            - name: localtime
              mountPath: /etc/localtime
              readOnly: true
            - name: zoneinfo
              mountPath: /usr/share/zoneinfo
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 100Mi
            limits:
              cpu: 500m
              memory: 250Mi
      volumes:
        - name: localtime
          hostPath:
            path: /etc/localtime
        - name: zoneinfo
          hostPath:
            path: /usr/share/zoneinfo

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kube-eventer
rules:
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - get
      - list
      - watch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
  name: kube-eventer
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-eventer
subjects:
  - kind: ServiceAccount
    name: kube-eventer
    namespace: kube-system

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kube-eventer
  namespace: kube-system

三 接入告警测试

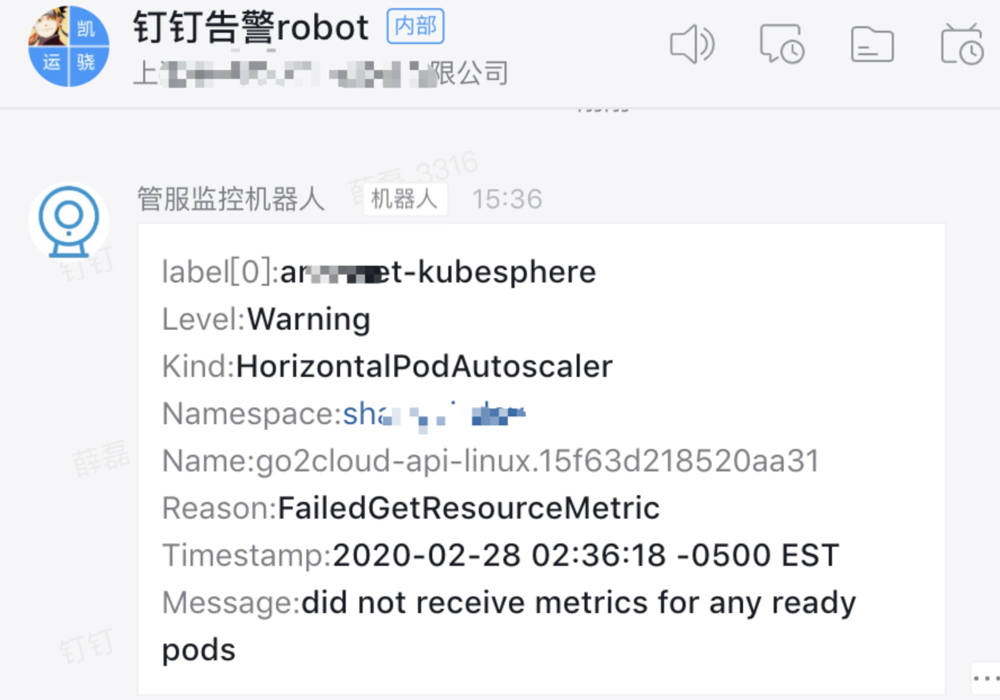

3.1 钉钉接入测试

--sink=dingtalk:https://oapi.dingtalk.com/robot/send?access_token=exxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx28fe&label=anchnet-kubesphere&level=Warning&msg_type=markdown

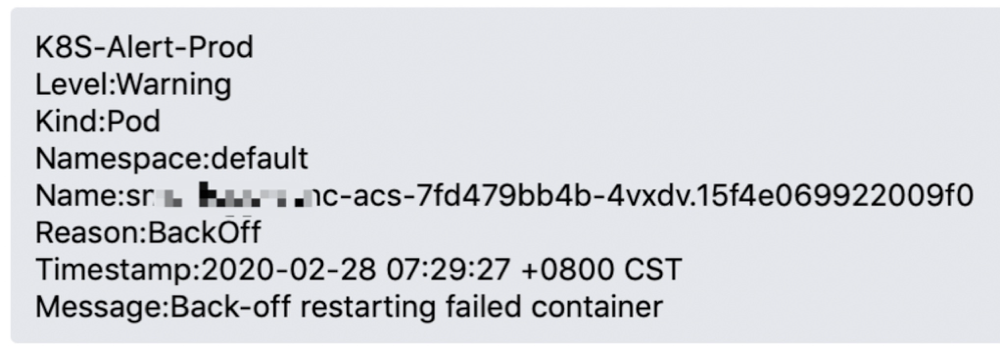

3.2 企业微信接入测试

--sink=wechat:?corp_id=wwxxxxxxxxxx1a&corp_secret=gxxxxxxxxxxxxxxxxxxxxxxxxxxx4U&agent_id=10xxxxxx7&to_user=&level=Warning&label=K8S-Alert-Prod&msg_type=markdown

参考链接

• github.com/AliyunConta…
• github.com/AliyunConta…
