MySQL+Keepalived实现双机HA

host1与host3互为主从，即host1为host3的主机，同时也为host3的从机

host1 192.168.203.131

host2 192.168.203.132

host3 192.168.203.133

1、安装keepalived

www.keepalived.org

2、注意先清空防火墙

iptalbles -F

3、配置host1与host3互为主从并授权给host2上的登陆

grant all on *.* to ‘replmonitor’@’192.168.203.%’ identified by ‘000000’ with grant option;

4、配置keealived.conf

! Configuration File for keepalived
host1上：
global_defs {
   notification_email {
     root@localhost.localdomain
   }
   notification_email_from root@localhost.localdomain
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id test-mysql-ha
}
vrrp_instance VI_1 {
    state BACKUP
    interface eth3 !当前机器的网络接口名称
    virtual_router_id 51
    priority 100  !优先级别
    nopreempt   !重启后也不要拿回主服务权限
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.203.200  !虚拟ip地址，等会在host2上登陆用此ip
    }
}
virtual_server 192.168.203.200 3306 { !此端口即为mysql的服务
    delay_loop 1
    lb_algo wrr
    lb_kind DR
    persistence_timeout 50
    protocol TCP
    real_server 192.168.203.131 3306 { !主机的ip地址
        weight 1
        notify_down /etc/keepalived/mysql.sh
        TCP_CHECK {
            connect_timeout 10
            bingto 192.168.203.200
            nb_get_retry 3
            delay_before_retry 3
            connect_port 3306
        }
    }
host3上只需将上面加黑的部分做相应的更改并去掉nopreempt 即可
 /etc/keepalived/mysql.sh的内容为：
#!/bin/bash
pkill keepalived

5、host1与host3开启keepalived，在host2上执行登陆mysql -h 192.168.203.200 -ureplmonitor -p （此host为虚拟的ip地址）

/etc/init.d/keepalived start

6、开始测试，我们将host1上的mysql停止

[root@host1 keepalived]# /etc/init.d/mysql stop
Shutting down MySQL………… SUCCESS!
[root@host1 keepalived]# ps -ef | grep keepalived
root 5409 5115 0 00:51 pts/2 00:00:00 grep keepalived

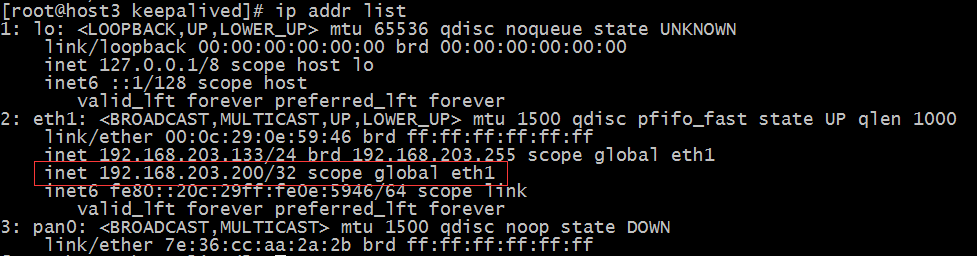

在host3上查询可知host3已经接管过虚拟的主机

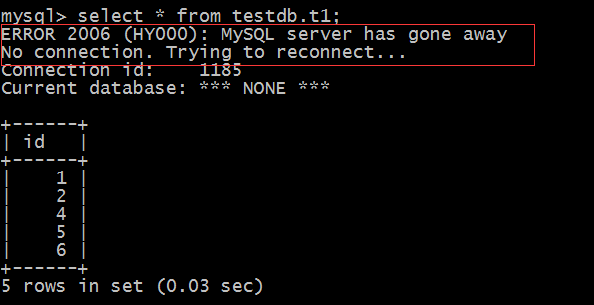

我们继续在host2上执行操作语句

会首先提示连接失败并重新连接，并得到查询结果，故障失效迁移成功

7、在host3上执行：

mysql> delete from t1 where id in(4,5,6);
Query OK, 3 rows affected (0.01 sec)

在host1上重新开启mysql
mysql> select * from t1;
+
| id   |
+
|    1 |
|    2 |
|    4 |
|    5 |
|    6 |
+
5 rows in set (0.00 sec)

mysql> start slave;
Query OK, 0 rows affected (0.03 sec)

mysql> select * from t1;
+
| id   |
+
|    1 |
|    2 |
+
2 rows in set (0.00 sec)

数据全部同步过来，再停掉host3上的mysql，在host1上插入一行数据：
mysql> insert into t1 values(3);
在host2上进行查询：
mysql> select * from testdb.t1;
ERROR 2006 (HY000): MySQL server has gone away
No connection. Trying to reconnect...
Connection id:    5
Current database: *** NONE ***

mysql> select * from testdb.t1;
+
| id   |
+
|    1 |
|    2 |
|    3 |
+
3 rows in set (0.00 sec)

可见数据也过来了，keepalive可以进行高效的数据迁移工作。
