EFK (Elasticsearch + Fluentd + Kibana) 是kubernetes官方推荐的日志收集方案，我们一起了解一下fluentd是如何收集kubernetes集群日志的，庆祝一下fluentd从 CNCF 毕业。开始之前，希望你已经读过Docker 容器日志分析, 本文是其延生的第二篇。
注意 需要和ELK(Elasticsearch + Logstash + Kibana) 以及EFK(Elasticsearch + Filebeat + Kibana)区分，后一个EFK一般是原生部署。
CNCF , 全称Cloud Native Computing Foundation（云原生计算基金会），kubernetes也是其旗下，或者说大多数容器云项目都是其旗下。
部署EFK
k8s中部署efk，所用的yaml文件在 github.com/kubernetes/… ，你可以使用文章附录提供的脚本进行下载。
下载完成后执行 cd fluentd-elasticsearch && kubectl apply -f . 命令进行部署。
检查elasticsearch和kibana service:
$ kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
elasticsearch-logging NodePort 10.97.248.209 <none> 9200:32126/TCP 23d
kibana-logging ClusterIP 10.103.126.183 <none> 5601/TCP 23d
检查fluentd DaemonSet:
$ kubectl get ds -n kube-system
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
fluentd-es-v2.4.0 2 2 2 2 2 <none> 23d
这里我们知道了fluentd是以daemonset方式运行的，es和kibana是service方式。
注意 elasticsearch 默认部署文件是没有持久化的，如果需要持久化，需要调整其PVC设置。
fluentd 功能分析
1、 查看fluentd的类型，没什么好说的
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: fluentd-es-v2.2.1
namespace: kube-system
2、 查看fluentd日志收集
containers:
- name: fluentd-es
image: k8s.gcr.io/fluentd-elasticsearch:v2.2.0
...
volumeMounts:
- name: varlog
mountPath: /var/log
- name: varlibdockercontainers
mountPath: /var/lib/docker/containers
readOnly: true
- name: config-volume
mountPath: /etc/fluent/config.d
...
volumes:
- name: varlog
hostPath:
path: /var/log
- name: varlibdockercontainers
hostPath:
path: /var/lib/docker/containers
- name: config-volume
configMap:
name: fluentd-es-config-v0.1.6
这里可以清晰的看到，fluentd以daemonset方式运作，然后把系统的 `/var/lib/docker/containers` 挂载，这个目录我们在[Docker 容器日志分析][Docker]中介绍过，这是docker容器日志存放路径, 这样fluentd就完成了对容器默认日志的读取。
fluentd的配置文件是以configmap形式加载，继续往下看看。
3、 收集容器日志配置
收集容器日志主要在 **containers.input.conf**，如下:
<source>
@id fluentd-containers.log
@type tail
path /var/log/containers/*.log
pos_file /var/log/es-containers.log.pos
tag raw.kubernetes.*
read_from_head true
<parse>
@type multi_format
<pattern>
format json
time_key time
time_format %Y-%m-%dT%H:%M:%S.%NZ
</pattern>
<pattern>
format /^(?<time>.+) (?<stream>stdout|stderr) [^ ]* (?<log>.*)$/
time_format %Y-%m-%dT%H:%M:%S.%N%:z
</pattern>
</parse>
</source>
细心的你会发现挂载的容器目录是 `/var/lib/docker/containers` ，日志应该都在这里，但是配置的监听的目录却是 `/var/log/containers` 。官方贴心的给出了注释，主要内容如下:
# Example
# =======
# ...
#
# The Kubernetes fluentd plugin is used to write the Kubernetes metadata to the log
# record & add labels to the log record if properly configured. This enables users
# to filter & search logs on any metadata.
# For example a Docker container's logs might be in the directory:
#
# /var/lib/docker/containers/997599971ee6366d4a5920d25b79286ad45ff37a74494f262e3bc98d909d0a7b
#
# and in the file:
#
# 997599971ee6366d4a5920d25b79286ad45ff37a74494f262e3bc98d909d0a7b-json.log
#
# where 997599971ee6... is the Docker ID of the running container.
# The Kubernetes kubelet makes a symbolic link to this file on the host machine
# in the /var/log/containers directory which includes the pod name and the Kubernetes
# container name:
#
# synthetic-logger-0.25lps-pod_default_synth-lgr-997599971ee6366d4a5920d25b79286ad45ff37a74494f262e3bc98d909d0a7b.log
# ->
# /var/lib/docker/containers/997599971ee6366d4a5920d25b79286ad45ff37a74494f262e3bc98d909d0a7b/997599971ee6366d4a5920d25b79286ad45ff37a74494f262e3bc98d909d0a7b-json.log
#
# The /var/log directory on the host is mapped to the /var/log directory in the container
# running this instance of Fluentd and we end up collecting the file:
#
# /var/log/containers/synthetic-logger-0.25lps-pod_default_synth-lgr-997599971ee6366d4a5920d25b79286ad45ff37a74494f262e3bc98d909d0a7b.log
#
4、 日志上传到elasticsearch
output.conf: |-
<match **>
@id elasticsearch
@type elasticsearch
@log_level info
type_name _doc
include_tag_key true
host elasticsearch-logging
port 9200
logstash_format true
<buffer>
@type file
path /var/log/fluentd-buffers/kubernetes.system.buffer
flush_mode interval
retry_type exponential_backoff
flush_thread_count 2
flush_interval 5s
retry_forever
retry_max_interval 30
chunk_limit_size 2M
queue_limit_length 8
overflow_action block
</buffer>
</match>
这里注意一下其中的**host**和**port**，均是elasticsearch service中定义的，如果修改过需要保持一致。fluentd也支持日志数据上传到外部的elasticsearch，也就是前文的elk/efk原生。
附录

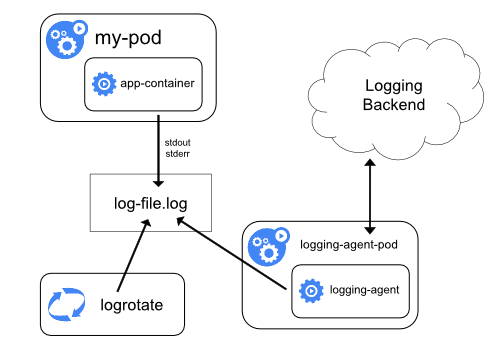

1、 架构图
1、 下载脚本文件 download.sh
for file in es-service es-statefulset fluentd-es-configmap fluentd-es-ds kibana-deployment kibana-service; do curl -o $file.yaml https://raw.githubusercontent.com/kubernetes/kubernetes/master/cluster/addons/fluentd-elasticsearch/$file.yaml; done
2、 参考链接:
* [kubernetes.io/docs/concep…][kubernetes.io_docs_concep]
* [kubernetes.io/docs/tasks/…][kubernetes.io_docs_tasks]
* [恭喜 Fluentd 从 CNCF 毕业][Fluentd _ CNCF]
