表格作为一种可视化交流模式及组织整理数据的手段，在各种场合及文档中应用广泛。常见的表格可包含文字、图片等元素，我们操作表格时可以插入图片、写入文字及格式化表格样式等。下面，将通过Java编程在Word文档中创建表格并实现格式化操作，包括设置字体、字号、字体颜色、字体粗细等，设置单元格对齐方式、单元格背景色、单元格合并、设置表格边框样式、插入图片等。
使用工具：Free Spire.Doc for Java 2.0.0 （免费版）
Jar****文件导入
方法****1****：首先通过官网获取jar包。下载控件包并解压。
导入步骤：在程序中新建一个directory目录，并命名（本示例中命名为lib）；将控件包lib文件夹下的Spire.Doc.jar文件（如下图1）复制到程序中新建的目录下。复制jar文件后，鼠标右键点击jar文件，选择”Add as Library”。完成导入（如下图2）。

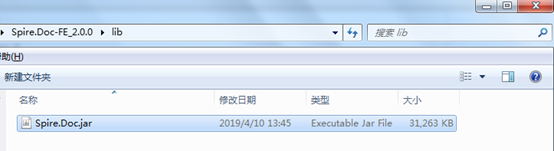

图******1******：

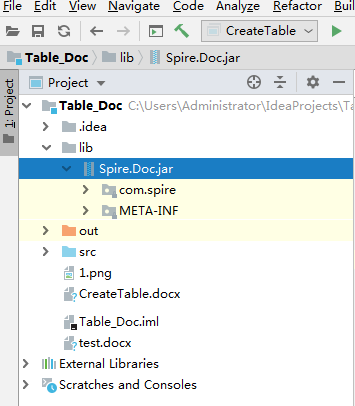

图******2******：
方法****2****：通过maven导入。参考导入方法。
Java****代码示例（供参考）
Step 1: 创建文档
Document doc = new Document();
Section sec = doc.addSection();
Step 2:声明数组内容
//声明数组内容
String[] header = {"班级","姓名","性别", "学号", "专业成绩"};
String[][] data =
{
new String[]{"一班","王丽", "女", "Y1256486", "138"},
new String[]{"一班","洪菲菲", "女", "Y5425875", "134"},
new String[]{"二班","刘洋", "男", "B1546258", "141"},
new String[]{"三班","冯刚", "男", "B1542367", "136"},
new String[]{"三班","刘思源", "男", "Z1263547", "133"},
};
Step 3:添加表格并写入数据
//添加表格
Table table = sec.addTable(true);
table.resetCells(data.length + 1, header.length);
//设置表格第一行作为表头，写入表头数组内容，并格式化表头数据
TableRow row = table.getRows().get(0);
row.isHeader(true);
row.setHeight(20);
row.setHeightType(TableRowHeightType.Exactly);
row.getRowFormat().setBackColor(Color.ORANGE);
for (int i = 0; i < header.length; i++) {
row.getCells().get(i).getCellFormat().setVerticalAlignment(VerticalAlignment.Middle);
Paragraph p = row.getCells().get(i).addParagraph();
p.getFormat().setHorizontalAlignment(HorizontalAlignment.Center);
TextRange range1 = p.appendText(header[i]);
range1.getCharacterFormat().setFontName("Arial");
range1.getCharacterFormat().setFontSize(12f);
range1.getCharacterFormat().setBold(true);
range1.getCharacterFormat().setTextColor(Color.white);
}
//写入剩余组内容到表格，并格式化数据
for (int r = 0; r < data.length; r++) {
TableRow dataRow = table.getRows().get(r + 1);
dataRow.setHeight(25);
dataRow.setHeightType(TableRowHeightType.Exactly);
dataRow.getRowFormat().setBackColor(Color.white);
for (int c = 0; c < data[r].length; c++) {
dataRow.getCells().get(c).getCellFormat().setVerticalAlignment(VerticalAlignment.Middle);
TextRange range2 = dataRow.getCells().get(c).addParagraph().appendText(data[r][c]);
range2.getOwnerParagraph().getFormat().setHorizontalAlignment(HorizontalAlignment.Center);
range2.getCharacterFormat().setFontName("Arial");
range2.getCharacterFormat().setFontSize(10f);
}
}
Step 4:合并单元格
table.applyVerticalMerge(0,1,2);
table.applyVerticalMerge(0,4,5);
Step 5:插入图片到单元格
DocPicture dp = table.getRows().get(1).getCells().get(0).addParagraph().appendPicture("1.png");
dp.getOwnerParagraph().getFormat().setHorizontalAlignment(HorizontalAlignment.Center);
Step 6:设置单元格背景色
for (int j = 1; j < table.getRows().getCount(); j++) {
if (j % 2 == 0) {
TableRow row2 = table.getRows().get(j);
for (int f = 1; f < row2.getCells().getCount(); f++) {
row2.getCells().get(f).getCellFormat().setBackColor(new Color(144,238,144));
}
}
}
Step 7:设置表格边框样式
table.getTableFormat().getBorders().setBorderType(BorderStyle.Thick_Thin_Large_Gap);
Step 8: 保存文档
doc.saveToFile("CreateTable.docx", FileFormat.Docx_2013);

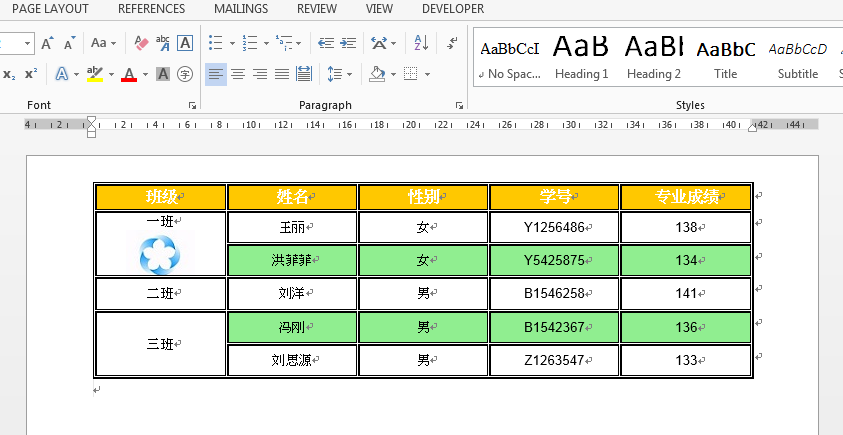

表格创建效果：
全部代码：
import com.spire.doc.*;
import com.spire.doc.documents.*;
import com.spire.doc.fields.DocPicture;
import com.spire.doc.fields.TextRange;
import java.awt.*;
public class CreateTable {
public static void main(String[] args){
//创建Document对象
Document doc = new Document();
Section sec = doc.addSection();
//声明数组内容
String[] header = {"班级","姓名","性别", "学号", "专业成绩"};
String[][] data =
{
new String[]{"一班","王丽", "女", "Y1256486", "138"},
new String[]{"一班","洪菲菲", "女", "Y5425875", "134"},
new String[]{"二班","刘洋", "男", "B1546258", "141"},
new String[]{"三班","冯刚", "男", "B1542367", "136"},
new String[]{"三班","刘思源", "男", "Z1263547", "133"},
};
//添加表格
Table table = sec.addTable(true);
table.resetCells(data.length + 1, header.length);
//设置表格第一行作为表头，写入表头数组内容，并格式化表头数据
TableRow row = table.getRows().get(0);
row.isHeader(true);
row.setHeight(20);
row.setHeightType(TableRowHeightType.Exactly);
row.getRowFormat().setBackColor(Color.ORANGE);
for (int i = 0; i < header.length; i++) {
row.getCells().get(i).getCellFormat().setVerticalAlignment(VerticalAlignment.Middle);
Paragraph p = row.getCells().get(i).addParagraph();
p.getFormat().setHorizontalAlignment(HorizontalAlignment.Center);
TextRange range1 = p.appendText(header[i]);
range1.getCharacterFormat().setFontName("Arial");
range1.getCharacterFormat().setFontSize(12f);
range1.getCharacterFormat().setBold(true);
range1.getCharacterFormat().setTextColor(Color.white);
}
//写入剩余组内容到表格，并格式化数据
for (int r = 0; r < data.length; r++) {
TableRow dataRow = table.getRows().get(r + 1);
dataRow.setHeight(25);
dataRow.setHeightType(TableRowHeightType.Exactly);
dataRow.getRowFormat().setBackColor(Color.white);
for (int c = 0; c < data[r].length; c++) {
dataRow.getCells().get(c).getCellFormat().setVerticalAlignment(VerticalAlignment.Middle);
TextRange range2 = dataRow.getCells().get(c).addParagraph().appendText(data[r][c]);
range2.getOwnerParagraph().getFormat().setHorizontalAlignment(HorizontalAlignment.Center);
range2.getCharacterFormat().setFontName("Arial");
range2.getCharacterFormat().setFontSize(10f);
}
}
//纵向合并指定单元格
table.applyVerticalMerge(0,1,2);
table.applyVerticalMerge(0,4,5);
//插入图片到指定单元格
DocPicture dp = table.getRows().get(1).getCells().get(0).addParagraph().appendPicture("1.png");
dp.getOwnerParagraph().getFormat().setHorizontalAlignment(HorizontalAlignment.Center);
//设置单元格背景颜色
for (int j = 1; j < table.getRows().getCount(); j++) {
if (j % 2 == 0) {
TableRow row2 = table.getRows().get(j);
for (int f = 1; f < row2.getCells().getCount(); f++) {
row2.getCells().get(f).getCellFormat().setBackColor(new Color(144,238,144));
}
}
}
//设置表格边框样式
table.getTableFormat().getBorders().setBorderType(BorderStyle.Thick_Thin_Large_Gap);
//保存文档
doc.saveToFile("CreateTable.docx", FileFormat.Docx_2013);
}
}
View Code
